Temperature

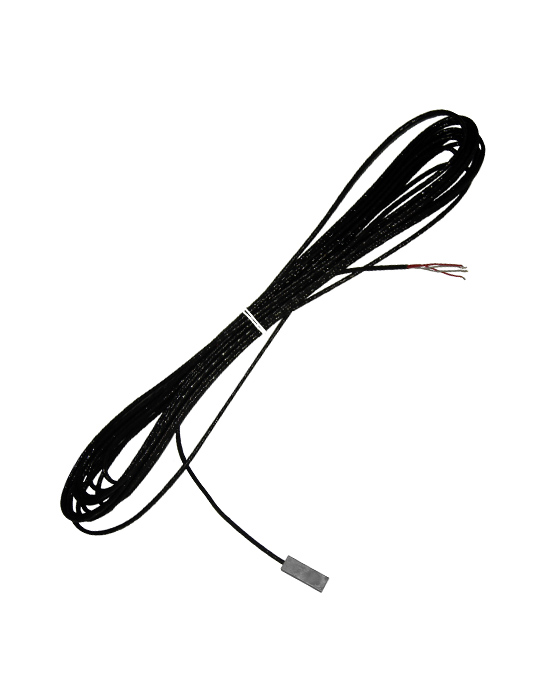

Contact temperature sensor
TC
Sensor to measure the surface contact temperature with RTD Pt100 1/3DIN (100Ω @ 0° C) for specific applications as the measure of solar panels temperature or generic measures. Compact and strong, made of aluminium with IP66 flat surface and / or adhesive. Easy to interface with any data logger.
Available with electrical signal output in current or voltage (4 to 20 mA or 0 ÷ 2 Vdc or RS485/ModBus – MCS option).
- Accurate and reliable surface contact temperature sensor
- Reduced size and weight
- Measure with Platinum resistance Pt100
- Compact and light design in aluminium
- WMO standards compliant
- Accuracy: ≤ 0.1°C
- Typical range: -40° ÷ +60°C (others on request)
- Sensitivity: 0.01° C
- Accuracy: DIN 43760 1/3 DIN (±0.1° C @ 0° C)
- Response time: < 10s
- Working conditions: -60° ÷ +100° C
- Signal output: RTD Pt100 4 wires (0÷2Vdc or 4÷ 20mA, digital RS485 Modbus command line. MCS option available).
- According to CE norms
